| Place of Origin: | China |
|---|---|
| Brand Name: | Laurel |
| Model Number: | HSB-05 |
| Minimum Order Quantity: | Customer request |
| Packaging Details: | wooden pallets and wooden cases |
| Delivery Time: | 30days |
| Supply Ability: | 1000ton per month |
| Application: | Steel And Metallurgy Industry | Material: | Flint Clay |
|---|---|---|---|
| Customization: | Based On Request Or Supply Suggestion | Color: | Yellow |
| Size: | Customizable | Product Name: | Cast Steel Brick,refractory Runner Brick |
| Bulk Density: | ≥2.45 | Usage: | Furnace Liner,casting System |
| Type: | High Alumina Refractory Brick,white Corundum Brick Facotory,Customized | Raw Material: | High Alumina Bauxite |
| Feature: | High Temperature Resistant,Thermal Shock | Sample: | Available |
| Highlight: | fireclay refractories,refractory fire bricks |
||

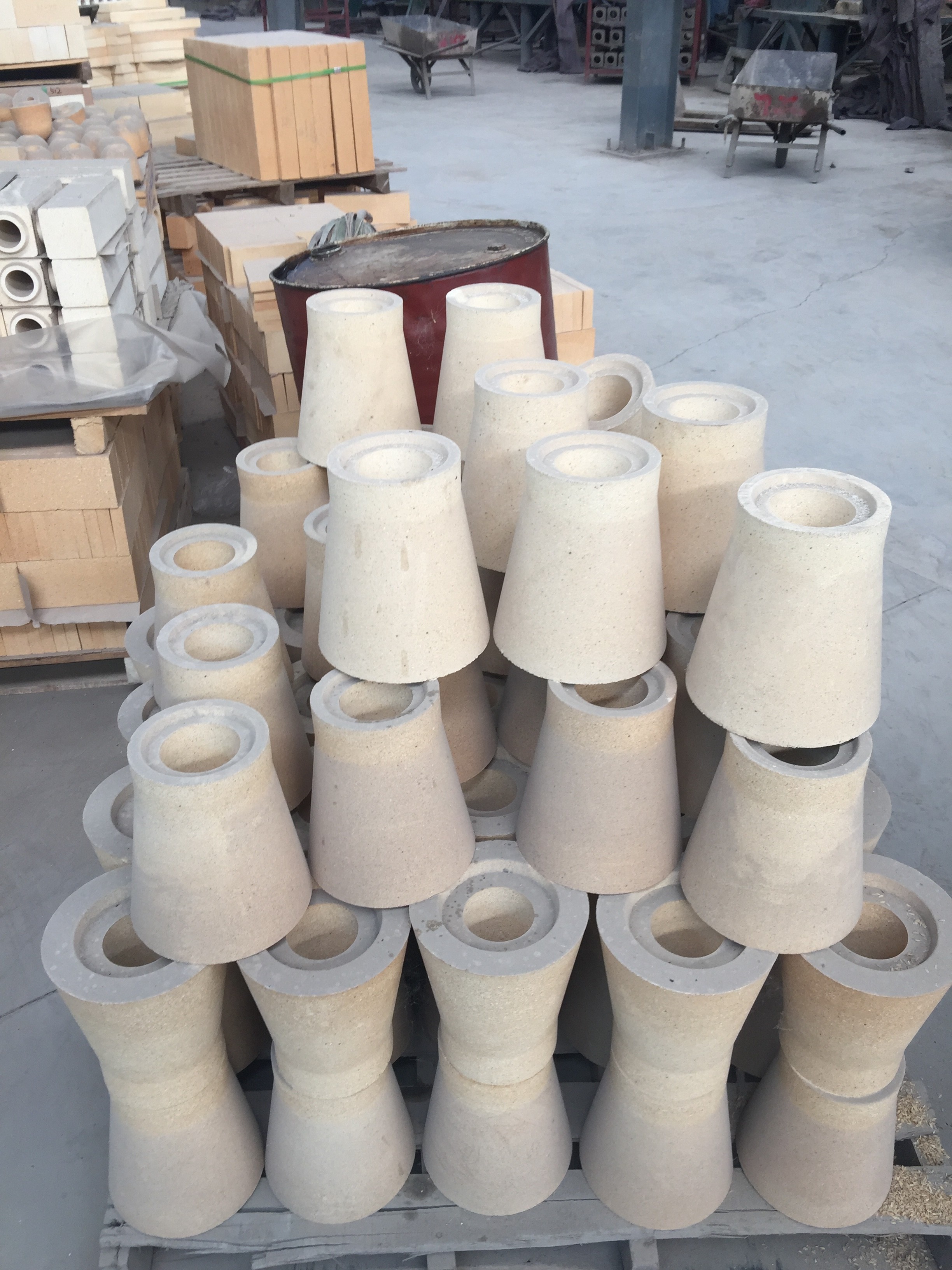

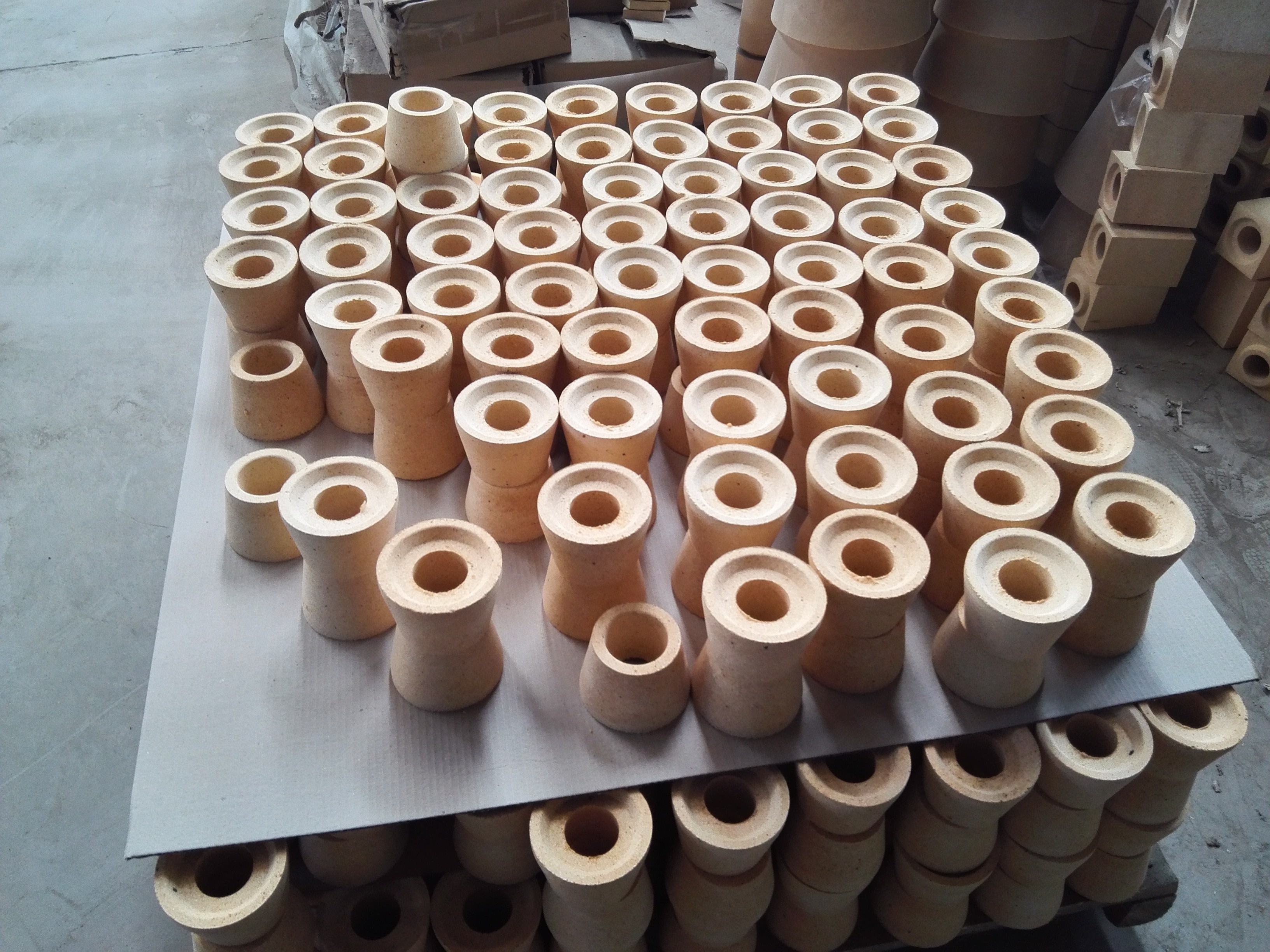

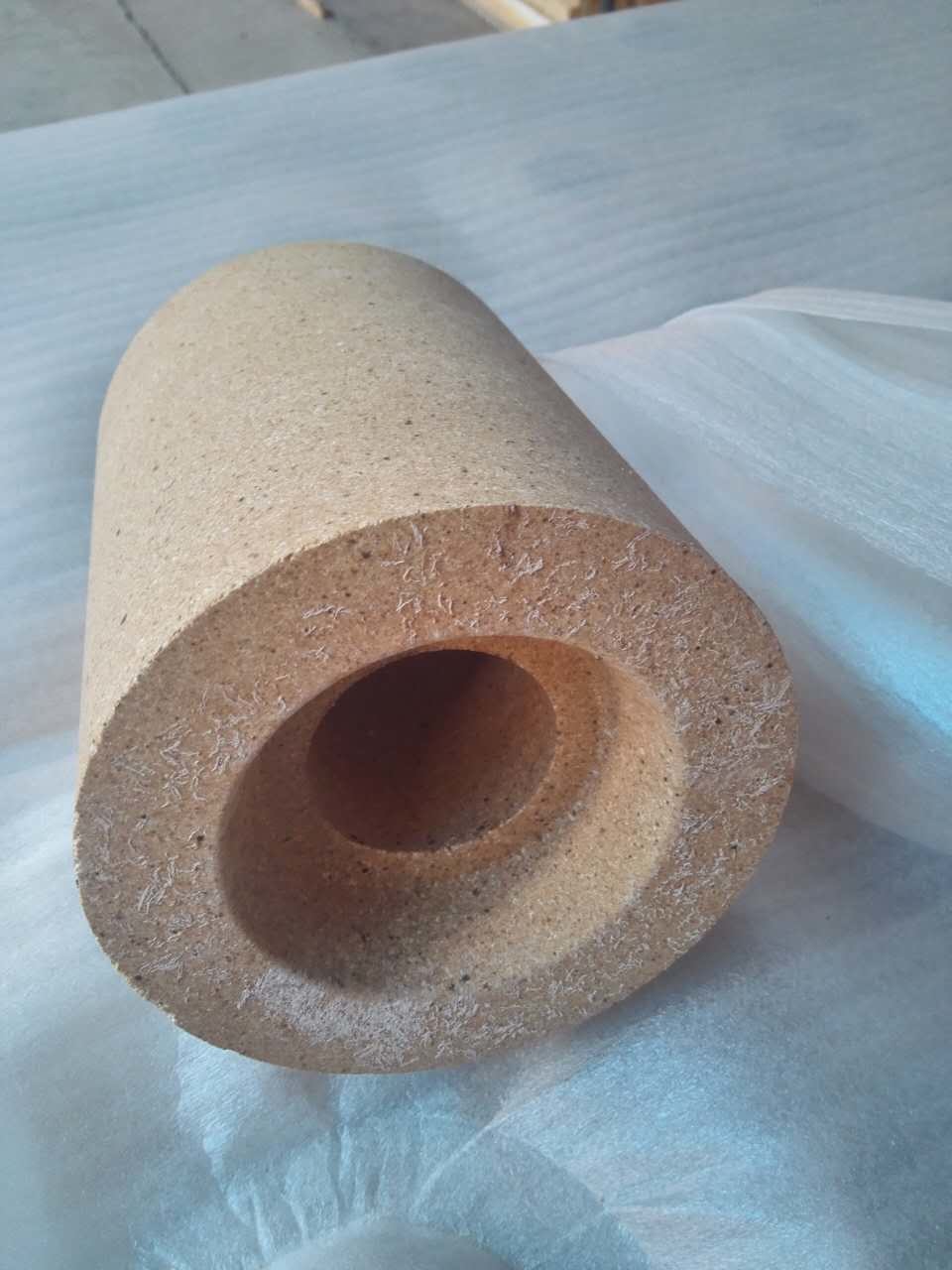

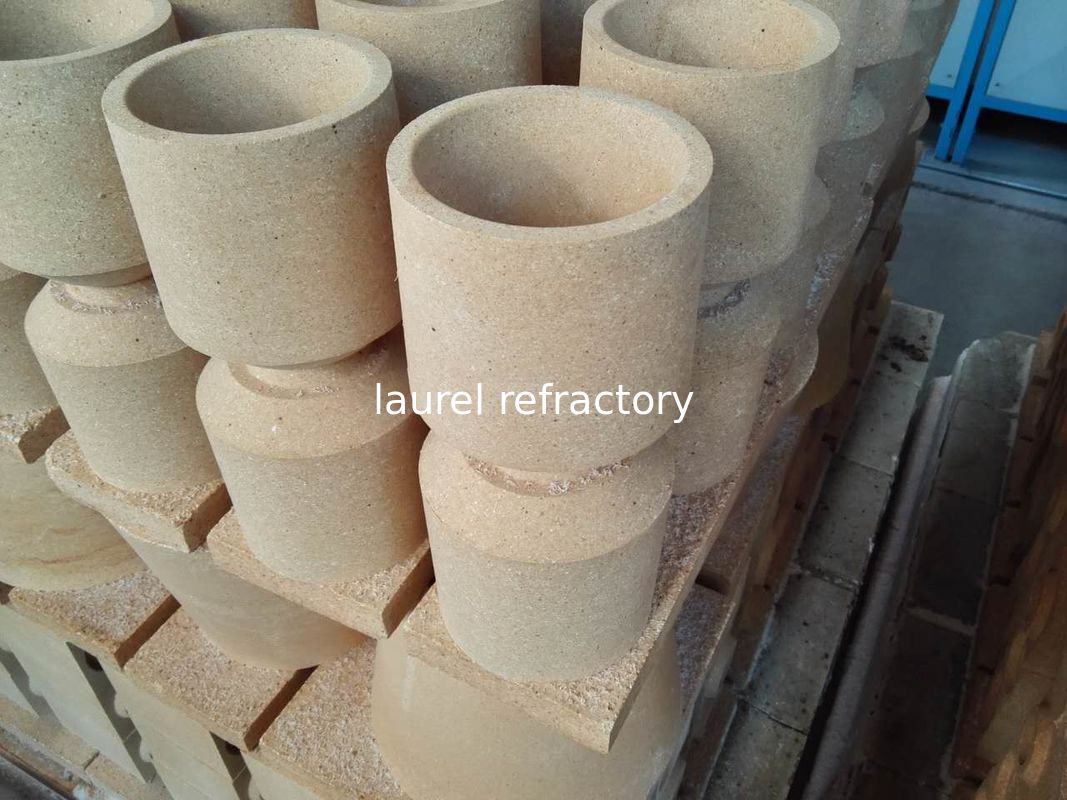

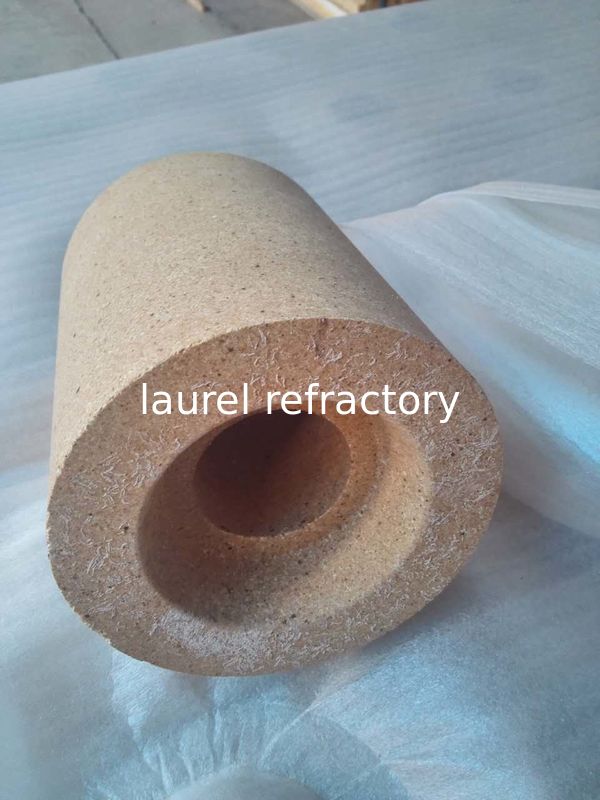

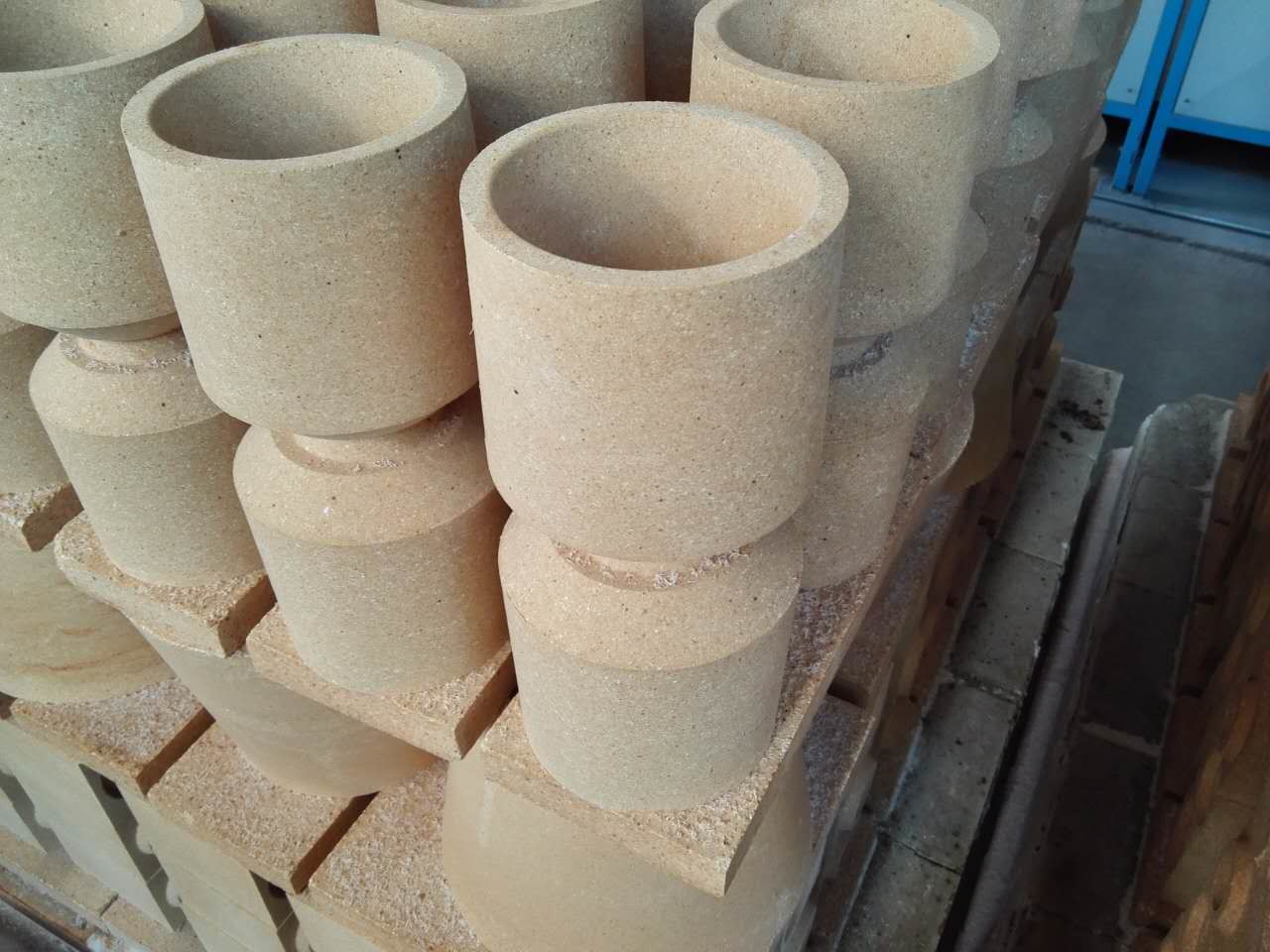

High Alumina Cast Steel Brick Fireproof Sleeve Brick Runner Brick
We can offer a complete range of High Alumina Cast Steel Brick Fireproof Sleeve Brick Runner Brick. In order to meet the specific requirements of each steel plant, we has set up a vast assortment of moulds and is therefore in a position to produce custom-made products or special shapes according to different production requirements.
Mould bottom bricks connect the runner bricks and casting ingot.It touches the steel ingot directly and thus is demanding for thermal shock and impact resistance ability.In order to improve the high temperature performance and manual application efficiency,we choose the premium raw materials and apply scientific formula for our production. Our products feature regular shape,smooth and clean channel,precise dimension,premium performance in thermal shock resistance and erosion proof.
Technical data
| Description | 40% | 50% | 60% | 70% | 80% | |
| Bulk Density | g/cm3 | 2.15 | 2.2 | 2.3 | 2.4 | 2.5 |
| Apparent Porosity | % | 24 | 24 | 24 | 23 | 23 |
| Cold Crushing Strength | MPa | 30 | 40 | 45 | 50 | 55 |
| Refractoriness | ℃ | 1710 | 1730 | 1750 | 1800 | 1830 |
| Softening temperature under load | ℃ | 1350 | 1430 | 1450 | 1500 | 1550 |
| Chemical Composition | % | |||||
| -Al2O3 | 40 | 50 | 60 | 70 | 80 | |
| -Fe2O3 | 2.5 | 2 | 2 | 2 |
2 |
