| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-05-02 |
| Minimum Order Quantity: | 20 GP |
| Packaging Details: | packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T;L/C |
| Supply Ability: | 500 ton |
| Insulating Tempeature: | 950-1150℃ | Cold Crushing Strength: | ≥100 Mpa |
|---|---|---|---|
| Rupture Strength Mpa: | >10 | Density: | 0.8-1.2 G/cm3 |
| Shape: | Rectangular | Installation Method: | Laying, Ramming, Casting, Gunning, Etc. |
| Water Absorption: | ≤10% | Shapes: | Available In Various Shapes And Sizes |
| Thickness Mm: | 3 - 30 | Raw Material: | Insulation Clay |
| Type: | Insulating Materials | Performance: | Keeping Heat |
| Usage: | Linings, Furnaces And Kilns Etc | Iron Content: | ≤0.2% |
| Highlight: | ceramic fire brick,insulated fire brick |
||

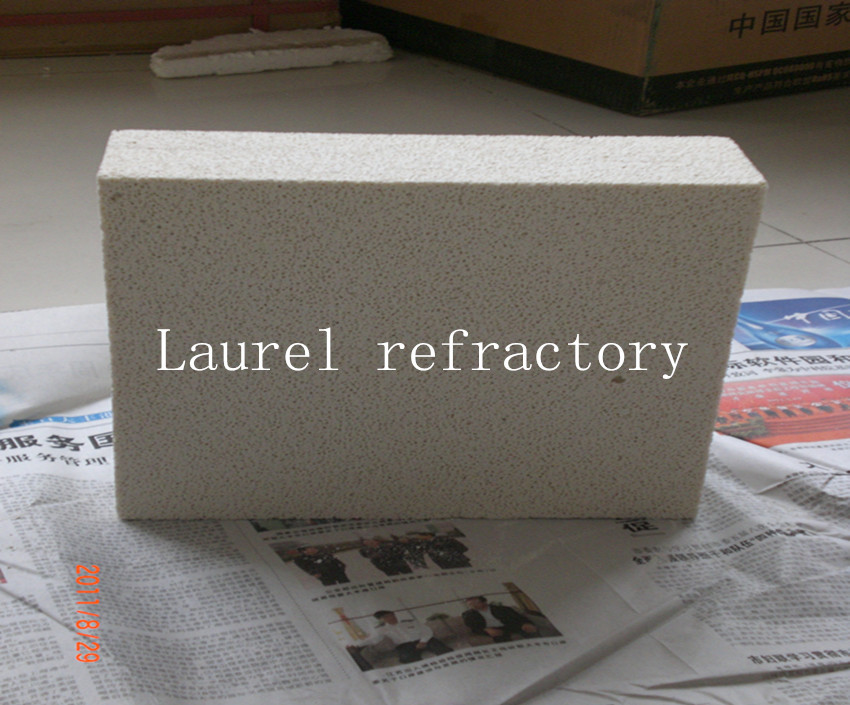

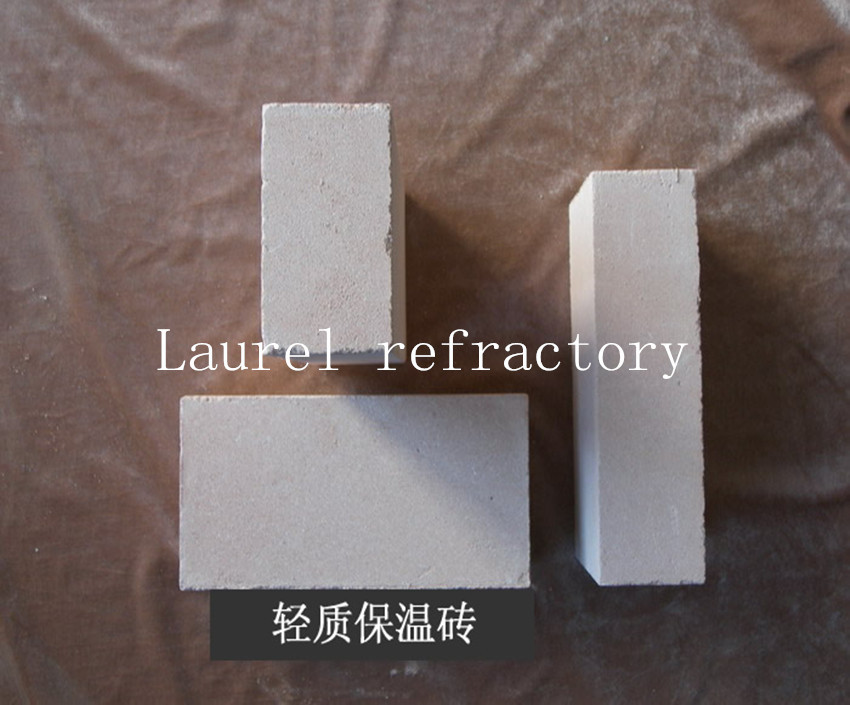

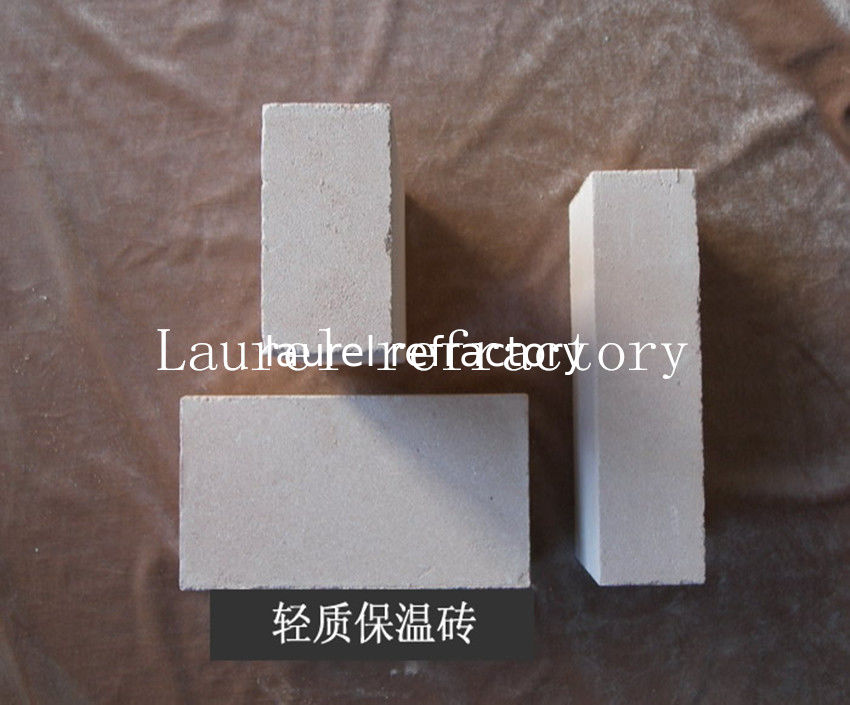

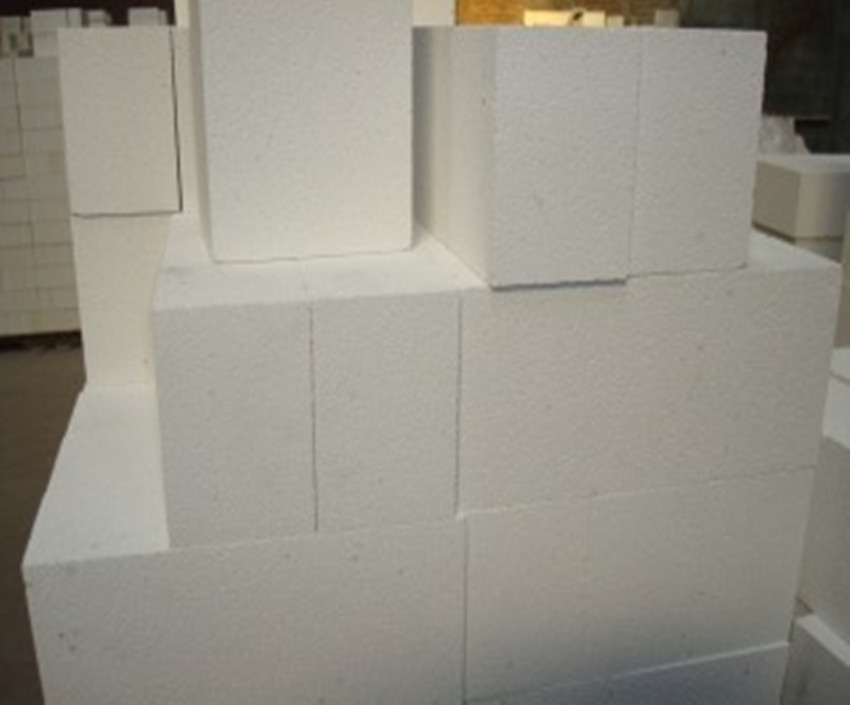

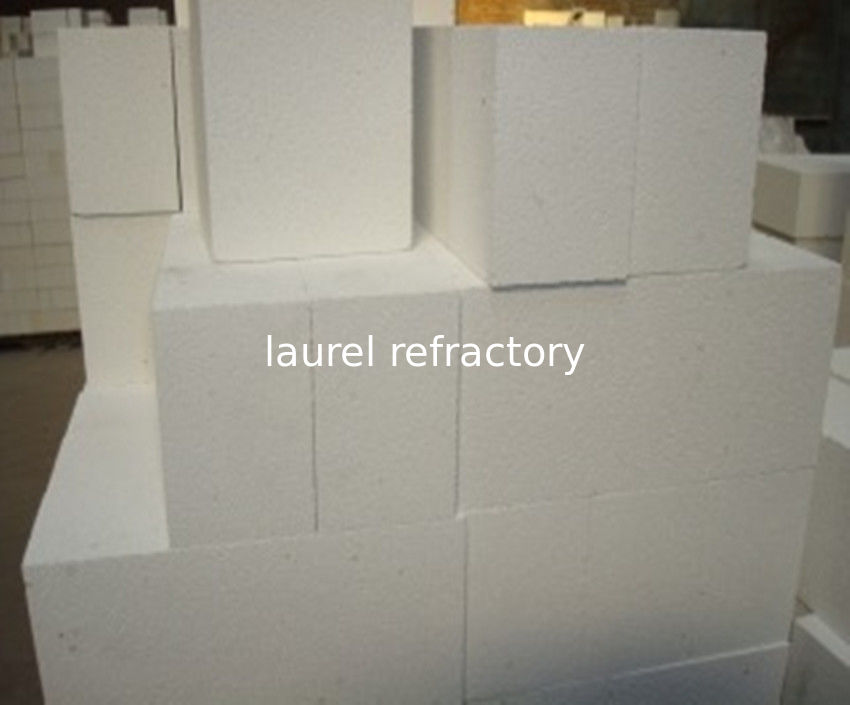

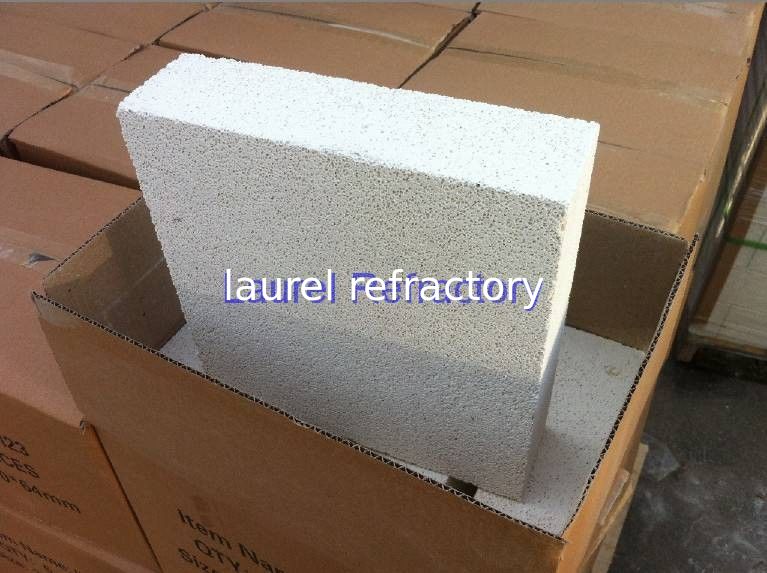

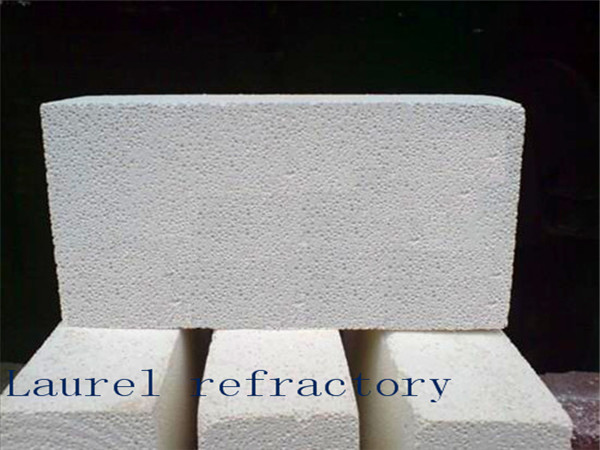

Refractory Insulating Fire Brick High Temperature Insulation Clay Fire Brick
The most competitive price,good quality,safty packing,prompt delivery time,and excellent after-sales services.
Lighter weight,Low thermal conductivity,low impurities,high insulating properties,high CCS and exact tolerance.
Description:
It is a kind of the light weight refractory products which contains the alumina content range from 30% to 46% .
Ingredients and water mixed together made the plastic pug or slurry, then Extruded-Form or moulding by casting, dry, and firing in the 1250-1350°Coxidizing atmosphere.
Applications:
Mainly used as thermal insulating layer without the liquid melt touched or gas pickling in the constructing the various industry furnaces.
The working temperature is 1200-1400°C
Specifications:
|
Sunrise Brand |
LA-0.5 |
LA-0. 6 |
LA-0. 8 |
LA-1.0 |
LA-1.3 |
|
USA Brand |
ISO125-0.5 |
ISO125-0.6 |
ISO135-0.8 |
ISO135-1.0 |
ISO140-1.2 |
|
Max Service Temperature (°C) |
1150 |
1200 |
1280 |
1300 |
1350 |
|
Bulk Density (g/cm3) |
0.55 |
0.6 |
0.8 |
1.0 |
1.3 |
|
Apparent Porosity % |
80 |
70 |
60 |
55 |
50 |
|
Cold Crushing Strength (Mpa) ≥ |
1.5 |
2.0 |
2.5 |
3.0 |
4.0 |
|
Reheating Linear Change (%) °CX 12H ≤ |
1250°C -0.5 |
1300°C -0.5 |
1350°C -0.5 |
1350°C -0.9 |
1350°C -0.9 |
|
Thermal conductivity(W/m.k) |
400°C |
0.14 |
0.25 |
0.35 |
0.41 |
|
|
600°C |
0.16 |
0.29 |
0.45 |
0.43 |
Competitive Advantage:
1.Best price, make the products competitive in your market
2.Abundant Experience.
3.Strict Quality Control. Meet clients'quality requirement.
4.Large stocks. Guarantee prompt delivery.
5.Professional Packing. Avoid damage and secure the goods in transportation
