| Place of Origin: | Zibo, China |
|---|---|
| Brand Name: | Laurel |
| Certification: | ISO9001 |
| Model Number: | Laurel-08-05 |
| Minimum Order Quantity: | 1*20GP |
| Packaging Details: | Carton box and pallet |
| Delivery Time: | 7-25 days after advance deposit |
| Payment Terms: | T/T;L/C |
| Product Name: | Fireproof Insulation Board | Bulk Density: | 260-350Kg/m3 |
|---|---|---|---|
| Feature:: | Light Weight, Low Thermal Conductivity, High Strength | Usage:: | Glass Furnace,Coke Oven,Blast Furnace |
| Material:: | Calcium Silicate | Temperature Range: | 650 º C - 1100º C |
| Highlight: | calcium silicate insulation board,high temperature insulation board |
||

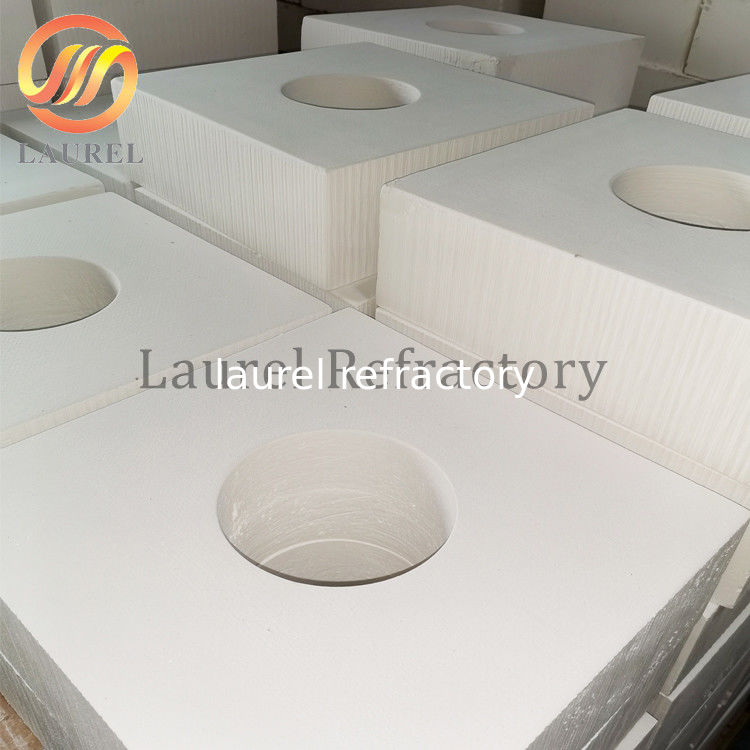

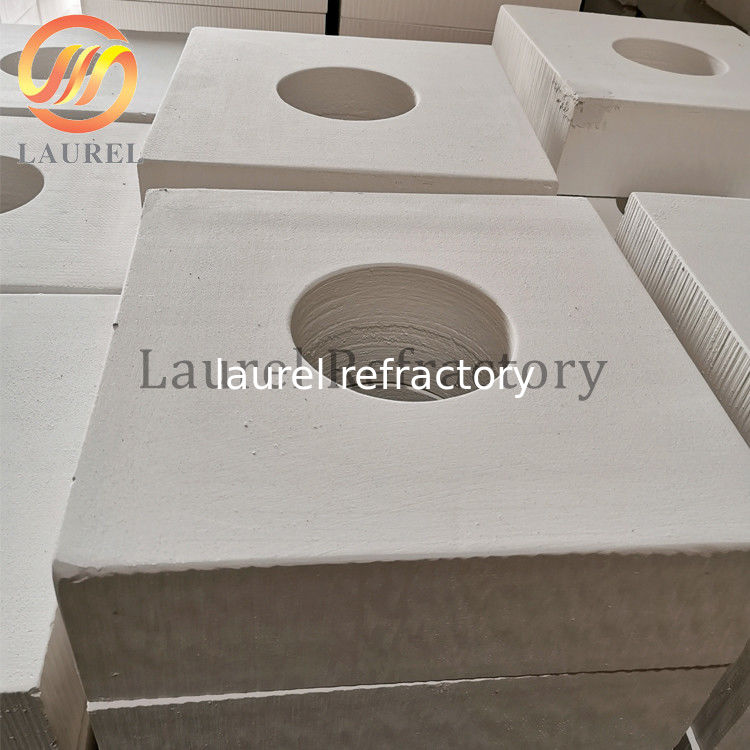

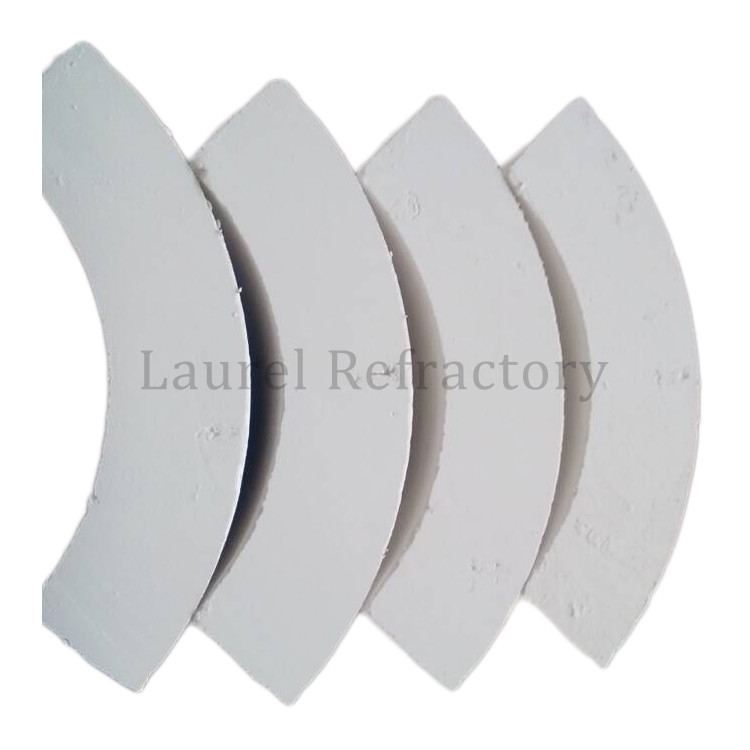

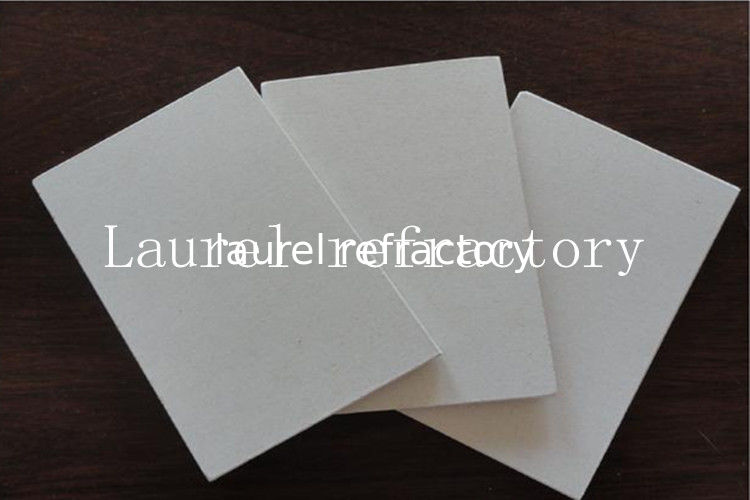

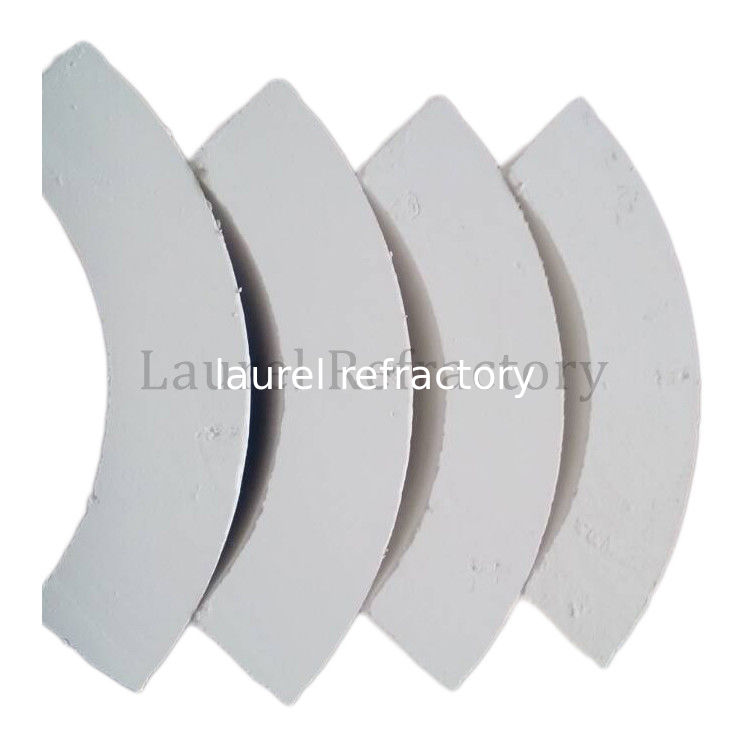

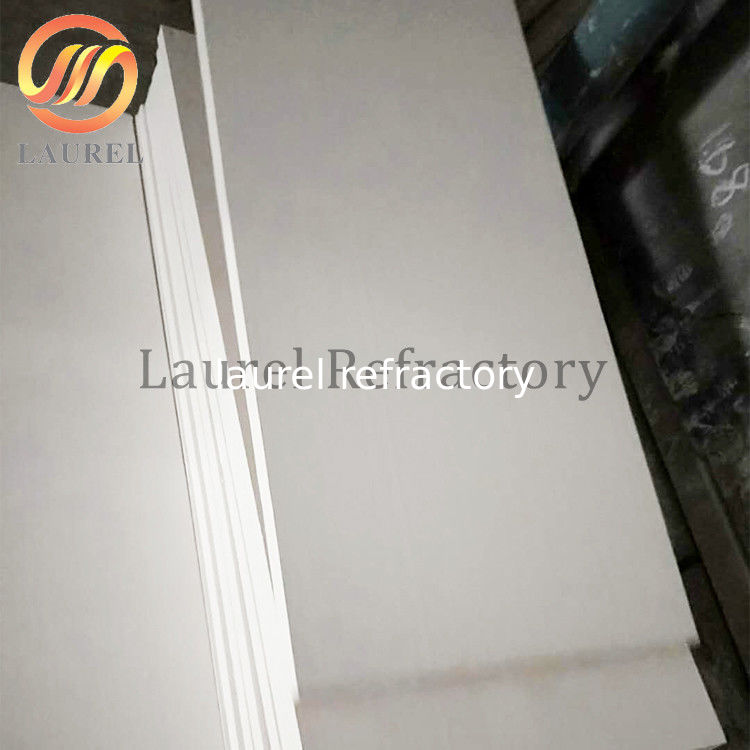

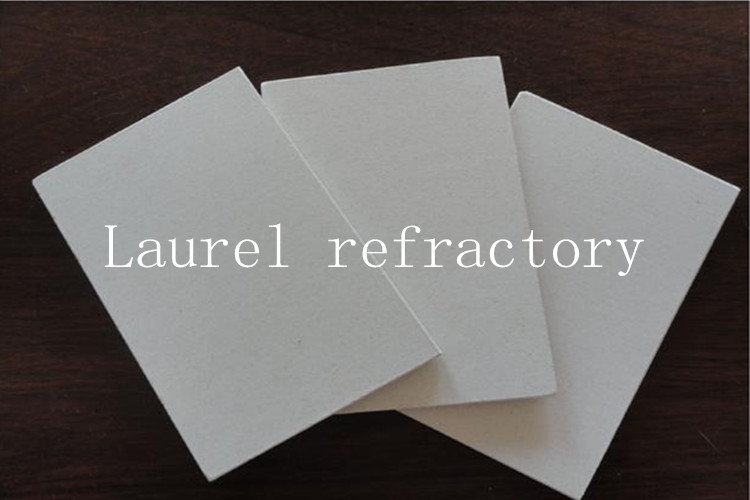

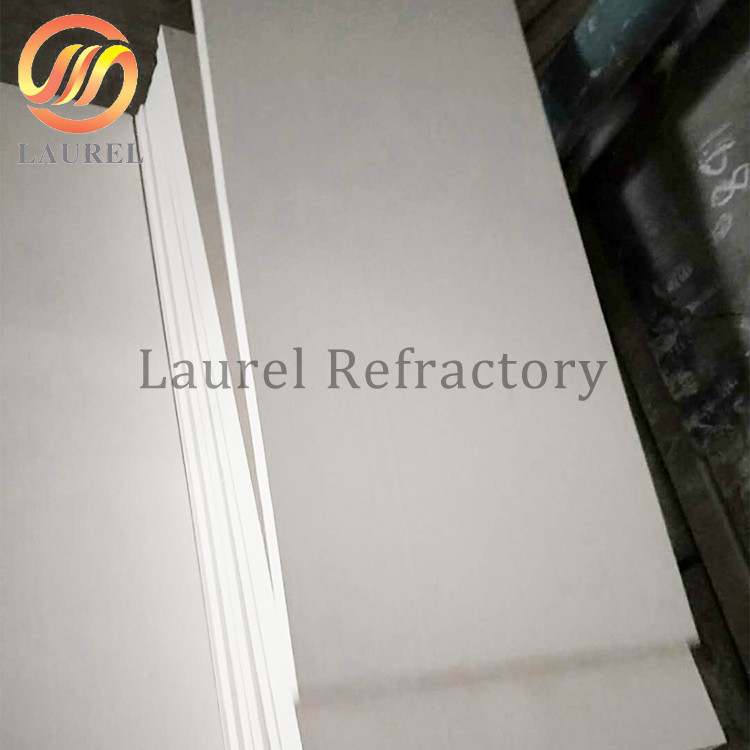

High Density Calcium Fibre Board With High Resistant Temperature
Description:
Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous operating temperature from 650C up to1100C. It is light weight, low thermal conductivity, high strength, easy to install, reliable and durable. There are 3 grades available namely 650 &1000 & 1100 which are commonly used as furnace backup insulation in steel, petrochemical, ceramic, cement & glass industry or fire protection in building construction. It not only provides energy saving, also increases production efficiency and gives personnel protection in industrial safety aspect. And in the housing construction Calcium Silicate Board is also used as the ceiling, fireproof and heat insulation materials of wall and sound absorption materials of decoration.
Applications:
Reheating furnace -Annealing furnace-Transfer ladle -Rotary kiln-Glass tank Dip tubes and spouts Nozzles -Shuttle kiln -Tunnel kiln -Aluminum melting and holding furnace- Distribution boxes, Flow gates Hot pipe supports-Other high temperature ovens or heat processing equipments
Recommendable applications:
Specifications:
650 & 1000 C 600-1000 mmX 300-500mm X 25-100mm Speicial deimension will be as per customer request
High temperature calcium silicate board is a kind of inorganic material with stable physical and chemical performance. With the characteristics of high resistant temperature, low thermal conductivity, very good effect of insulation for fire and sound, lightweight and high specific strength. The board will never deformed and will not send out any irritant smoke and gas when burned and high temperature. Free from asbestos, is a pure green building material.
Properties
Physical Performance | Unit | board for steel door | board for wood door |
Bulk Density | Kg/m3 | 260 – 340 | 270 - 350 |
Flexural Strength | Mpa | ≥0.6 | ≥0.7 |
Thermal Cond. | W/m.k | ≤0.068 | ≤0.072 |
Temp. limited | ℃ | 1250 | 1250 |
Linear Shrinkage (1000℃×3h) | % | ≤2 | ≤2 |
Soundproof Coeffecient | db |
| ≥30 |
Sizes and Dimensional Tolerances
Length × Width (mm) | 1080x950 1060x930 |
Thickness (mm) | 30 - 60 |
Tolerance (mm) | Length, width ±3, Thickness ±0.5 |
*According to the requirement of customer, we can make some special proceeding, such as making tenon and groove, joint together, etc.
*The high temperature adhesive for sticking core material & the high temperature glue for laminating core material with MDF, plywood and steel panel are also available here.
